Diaphragm vacuum pump KVP8

FOB Price : Get a Price/Quote

Min.Order : 1 Set(s)

Certification : CFDA,GMP,ISO9001,ISO13485,CE,FDA

Brand Name : Kamoer

Payment Terms : L/C,T/T,PayPai,WesternUnion,MoneyGram,Others

favorite

share :

product information

  • brand name : Kamoer

  • certification :

  • fob price :

  • min.order : 1 Set(s)

  • warranty :

  • payment terms : L/C,T/T,PayPai,WesternUnion,MoneyGram,Others

  • Packaing :

  • Specification :

  • Trademark : Kamoer

  • Production Capacity :

  • place of origin : China

  • Manag Certifica : CFDA,GMP,ISO9001,ISO13485,CE,FDA

product description

Model: KVP8                                                                        Certification: CE

Dimension:-                                                                          Packaging Details: Carton

Brand Name: Kamoer                                                           Place of Origin: Shanghai,China

Warranty:1 year                                                                    Color: Blue,black,green and yellow

Size:-                                                                                    Finish:-

Customer's Logo:-                                                                MOQ:1 PC
Processing Time:Receive payment immediatelyreply on the quantity
Usage:Medical,Chemical,Laboratory and Factory
Quality:Meet standards
Packing:170mm*130mm*120mm

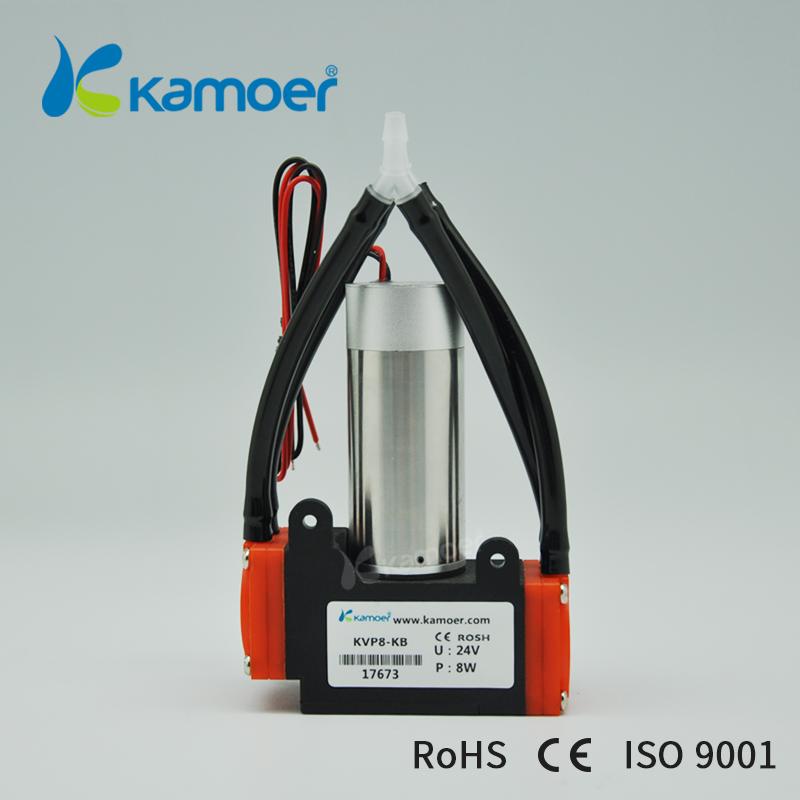

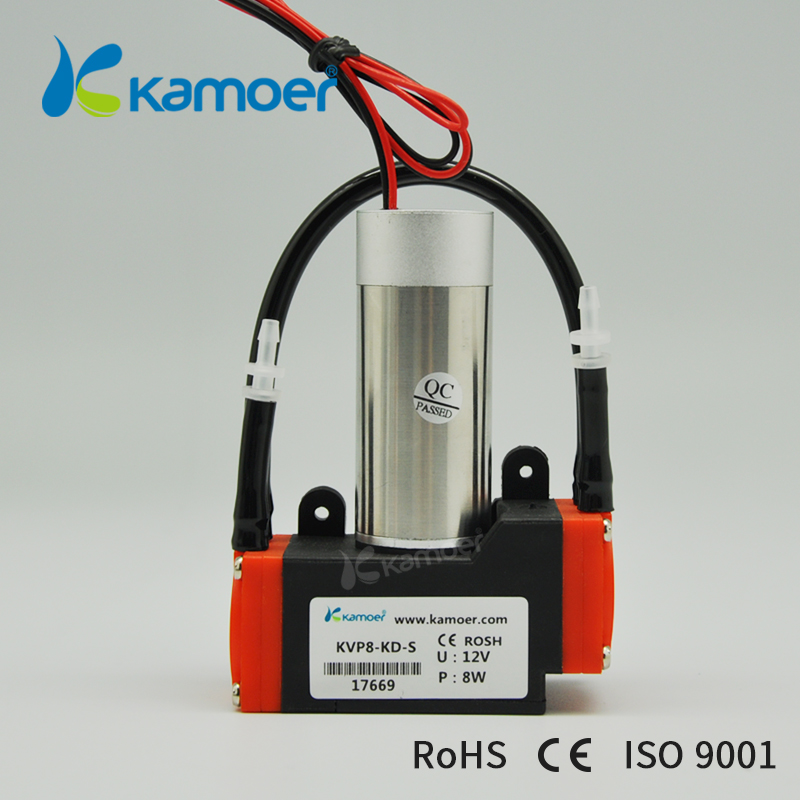

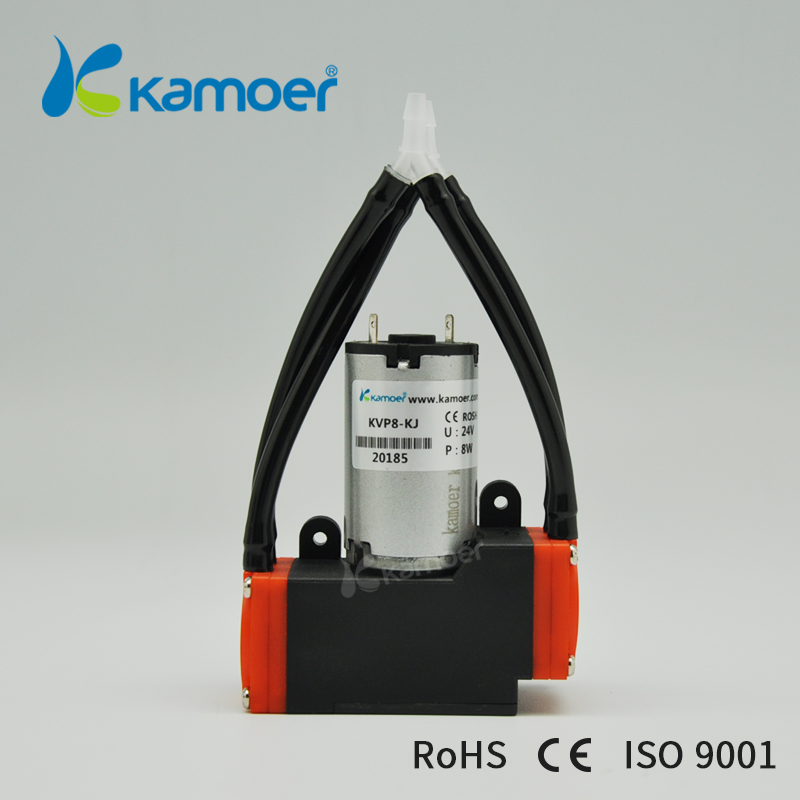

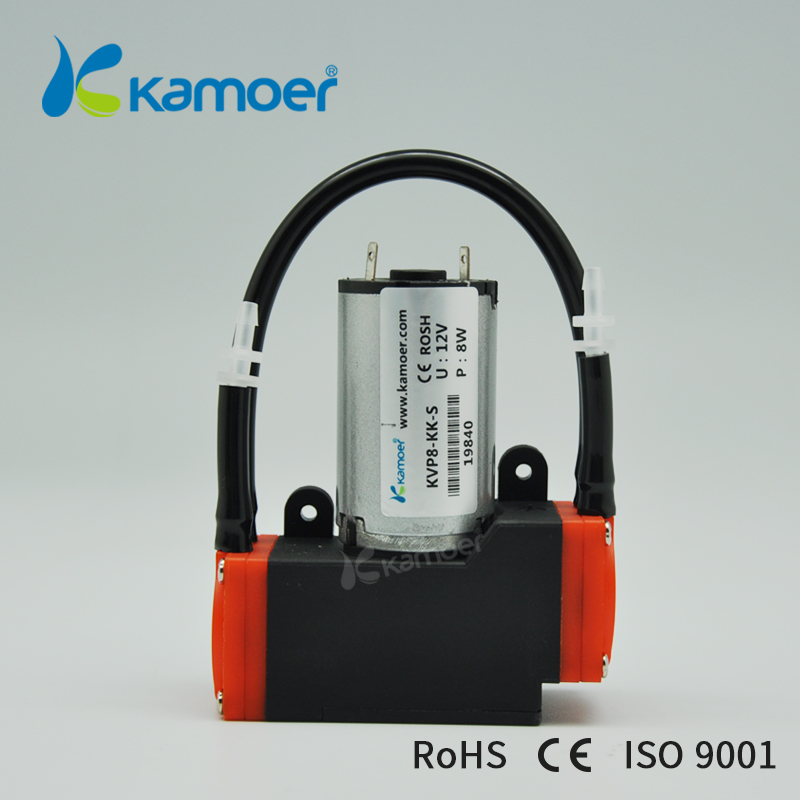

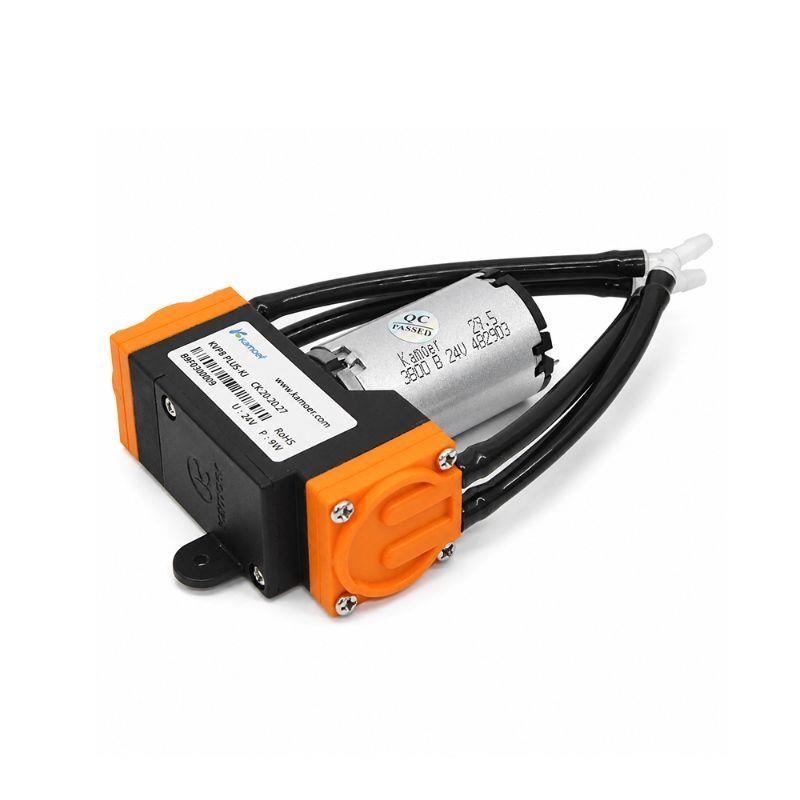

KVP8 series Vacuum Pump

FEATURES:
Compact size
Low vibration
Low noise
Chemical resistant materials available
Oil-free. No contamination
Life up to 10,000 hours

TECHNICAL DATA:
Flow (L/min): 8.0 (parallel)
Pressure (bar): 1.0
Vacuum (bar): – 0.8
Voltage (VDC): 12/24
Current (Amp): 0.55/0.32
Motor Code Key*: 5
Weight (g): 280
Dimensions (mm): 100x75x32

*MOTOR CODE KEY:

1: Standard DC Motor
2: Premium DC Motor
3: Coreless Brushless Motor
4: Coreless Brushless Motor w/ Controller
5: Brushless Motor

 WIRING INSTRUCTIONS FOR BRUSHLESS MOTOR (3 Wires):

RED: +ve
BLACK: -ve
YELLOW: PWM (Pulse Width Modulation) 0-5 V analog
* Red and Yellow wires may be joined together if PWM function is not needed.
