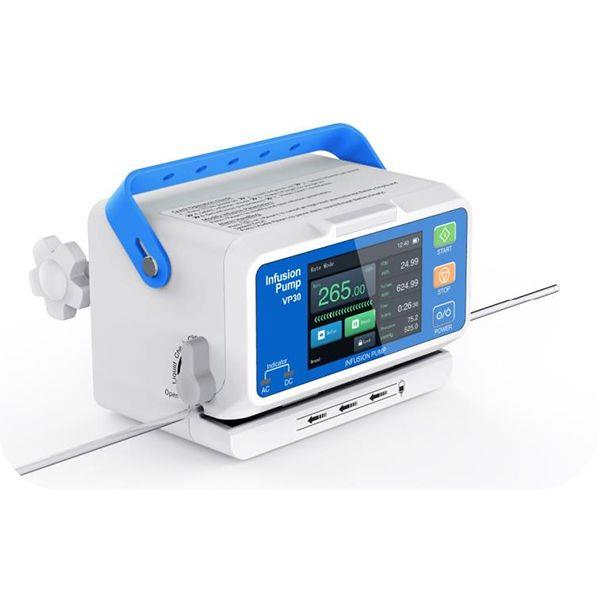

Infusion Pump

FOB Price : Get a Price/Quote

Min.Order : 1 Piece(s)

Certification : CFDA,CE,CFS

Brand Name : DY-MED

Payment Terms : T/T,WesternUnion

contact now Video Conference

favorite

share :

Add to Compare

product information

brand name : DY-MED
certification : CFDA,CE,CFS
min.order : 1 Piece(s)
warranty : /
payment terms : T/T,WesternUnion
Packaging : /
Specification : /
place of origin : China

product description

Item	Technical Parameter
Infusion Mode	Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode
Rate Unit	Ml/h, volume/time, d/min
IV Sets	Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm)
Flow Rate	1.0ml/h~1200ml/h; 1.0d/min~400/min
Increment	1.0-99.9ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h
Flow Rate Deviation	<±5%(after calibration)
VTBI	0.1~9999ml
Infused Volume	0~999ml
Time Setting	1 min to 99h59min
Purge Rate	600ml/h, displaying purge volume
KVO	0.1ml/h~5.0ml/h, adjustable
Keypad	Numeric Keypad, user friendly
BOLUS Mode	Available for Bolus mode, flow rate adjustable
Night Mode	Night mode, No operation for 5mins, LCD brightness lower automatically
Occlusion Pressure Detection	Upstream and downstream pressure detection, detection range: 40-130Kpa, 0~9 levels adjustable, dynamic pressure value display
Air bubble Detection	Ultrasonic detection, ≥50μL , Single bubble volume: 50~300μL , 0~9 levels adjustable
Alarm &Volume	0~9 levels adjustable
Anti-reverse Function	Anti-reverse function on motor to prevent upstream
IV Set Management	Open System, Can accept all kinds of IV Set after calibration
Self-Testing	Self-Testing when start up and during infusing
Audio and Visual Alarms	Air bubble, upstream occlusion, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery low, battery empty, battery disengaged, AC Power disengaged, Motor error, pump error, pressure sensor error, parameter error, system abnormal.
Screen	3.2” Brightness LCD
Power Supply	AC:100V~240V, 50Hz/60Hz,≤25VA
Battery	Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours@25ml/h, displaying remaining battery
Operation Condition	Temperature: 5℃~40℃, Relative humidity:20%~80%, Atmospheric pressure:70~106Kpa
Transportation and Storage	Temperature: -20℃~55℃, Relative humidity:10%~95%, Atmospheric pressure:50~106Kpa
Classification	Type CF, Class I, IPX3, ISO13485, CE, IEC60601
